TA-SILENZIO

For extract air systems with demanding acoustic requirements and low airflow velocities

Rectangular air terminal units for extract air systems with variable volume flow in buildings requiring high acoustic comfort and low air velocities
■ Highly effective integrated attenuator
■ Optimised for air velocities of 0.7 – 7 m/s
■ High control accuracy under all upstream conditions
■ Compact construction with rectangular connections at both ends
■ Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
■ Leakage airflow at closed damper blade according to EN 1751, up to class 4
■ Casing air leakage according to EN 1751, class C

Optional equipment and accessories
■ Acoustic cladding for the reduction of case-radiated noise
■ Secondary silencer Type TS for the reduction of air-regenerated noise

General Information

Application
  • Rectangular VAV terminal units for use in ventilation and air conditioning systems
  • For controlling, restricting or shutting off airflows in extract air systems with low velocities and demanding acoustic requirements
  • Integral attenuator
  • Closed-loop volume flow control with auxiliary power
  • For variable or constant volume flow systems
  • Shut-off via customer‑provided forced override
  • Can also be used for differential pressure control with suitable control components

Special characteristics
  • Hygiene tested and certified
  • Direct connection to ductwork
  • Factory setting or programming and aerodynamic function testing
  • Parameters can also later be set on the control component; additional adjustment device may be necessary

Nominal sizes
  • 125, 160, 200, 250, 315

Variants
  • TA-Silenzio: Extract air unit
  • TA-Silenzio-D: Extract air unit with acoustic cladding
  • Units with acoustic cladding and/or secondary silencer Type TS for very demanding acoustic requirements
  • Acoustic cladding cannot be retrofitted

Parts and characteristics
  • Ready-to-commission unit which consists of mechanical parts and control components
  • Averaging differential pressure sensor for volume flow rate measurement
  • Damper blade
  • Integral attenuator
  • Factory assembled control components complete with wiring and tubing
  • Aerodynamic functional testing on a special test rig prior to shipping of each unit
  • Set-up data is given on a label or volume flow rate scale affixed to the unit
  • High control accuracy regardless of upstream conditions

Attachments
  • Easy controller: compact unit with potentiometers
  • Compact controller: compact unit consisting of controller, differential pressure transducer and actuator
  • Universal controller: controller, differential pressure transducer and actuators for special applications
  • LABCONTROL: Control components for air management systems

Useful additions
  • Secondary silencer Type TS

Construction features
  • Rectangular casing
  • Replaceable seals
  • Flanges on both ends for the connection to ductwork
  • Position of the damper blade indicated externally at shaft extension
  • Thermal and acoustic insulation (lining)

Material and surfaces
  • Casing made of galvanised sheet steel
  • Damper blade and differential pressure sensor made of aluminium
  • Lining is mineral wool
  • Plastic plain bearings

Variant with acoustic cladding (-D)
  • Acoustic cladding made of galvanised sheet steel
  • Lining is mineral wool
  • Rubber elements for the insulation of structure-borne noise

Mineral wool
  • According to EN 13501, fire rating class A1, noncombustible RAL quality mark RAL-GZ 388
  • Non-hazardous to health thanks to being highly biosoluble in accordance with the Ordinance on Hazardous Substances and Note Q of the European Directive (EC) No. 1272/2008
  • Faced with glass fibre fabric as a protection against erosion from airflow velocities of up to 20 m/s
  • Inert to fungal and bacterial growth

Standards and guidelines
Fulfils the hygiene requirements of
  • EN 16798, Part 3
  • VDI 6022, Sheet 1
  • DIN 1946, Part 4
  • Other standards and guidelines in accordance with the hygiene certificate

Casing leakage
  • EN 1751, Class C

Closed blade air leakage
  • EN 1751, Class 4
  • Meets the increased requirements of DIN 1946, Part 4, with regard to the acceptable closed blade air leakage

Maintenance
  • Low-maintenance as construction and materials are not subject to wear

Disclosure of Chemicals
  • RoHS EU Directive 2011/65/EU (RoHS)
    • This product or single variants comply with EU Directive 2011/65/EU (RoHS) on the restriction of the use of certain hazardous substances in electrical and electronic equipment. For more information, please refer to our Environmental Product Declarations.
  • REACH 1907/2006 (EC Regulation REACH)
    • This product or single variants comply with the provisions of EC Regulation No. 1907/2006, also known as REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals). For more information, please refer to our Environmental Product Declarations.

Műszaki információk

  • FUNCTION
  • TECHNICAL DATA
  • SPECIFICATION TEXT
  • ORDER CODES

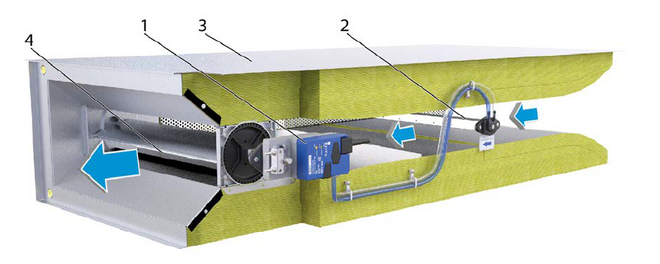

Schematic illustration TA-Silenzio TA-Silenzio-Function

1 Integrated attenuator
2 Measuring probe
3 Control components, e.g. Easy controller
4 Damper blade with seal

The VAV terminal unit is fitted with a differential pressure sensor for measuring the volume flow rate.
The control components (attachments) include a differential pressure transducer that transforms the differential pressure into an electric signal, a controller, and an actuator; the control functions can be achieved with an Easy controller, with a Compact controller, or with individual components (Universal).
For most applications, the setpoint comes from a room temperature controller.
The controller compares the actual value with the setpoint and alters the control signal of the actuator if there is a difference between the two values.
An integral attenuator reduces the noise that is created by the restriction of the airflow.An integral attenuator reduces the noise that is created by the restriction of the airflow.


Nominal sizes

125 – 315

Volume flow rate range

27 – 1093 l/s or 95 – 3937 m³/h

Volume flow rate control range (unit with dynamic differential

pressure measurement)

Approx. 10 – 100 % of the nominal volume flow rate

Minimum differential pressure

Up to 109 Pa (without secondary silencer)

Maximum differential pressure

1000 Pa

Operating temperature

10 to 50 °C

This specification text describes the general properties of the product. Texts for variants can be generated with our Easy Product Finder design programme.


Specification text
Rectangular VAV terminal units for variable and constant air volume systems with high acoustic requirements, for extract air, available in 5 nominal sizes. High control accuracy of the set
volume flows under any upstream conditions. Ready-tocommission control unit, consisting of mechanical parts and electronic control components. Each unit contains an averaging differential pressure sensor for volume flow measurement, a damper blade, and an integrated sound attenuator. Control components are factory-mounted, piped and wired. Differential pressure sensor with 3 mm measuring holes, making it resistant to contamination. Fan side and room side both suitable for the connection of air duct profiles. Casing with acoustic and thermal insulation. Position of the damper blade visible from the outside due to the shape of the shaft. The damper blade is factory-set to open position, which allows airflow even without control function; except for variants with defined NC safety position. Meets the hygiene requirements of VDI 6022, DIN 1946, Part 4, as well as EN 13779 and VDI 3803.


Special features
  • Hygiene tested and certified
  • Direct connection to ductwork
  • Factory setting or programming and aerodynamic function testing
  • Parameters can also later be set on the control component; additional adjustment device may be necessary

Materials and surfaces
  • Casing made of galvanised sheet steel
  • Damper blade and differential pressure sensor made from aluminium profiles
  • Lining made of mineral wool
  • Plastic plain bearings

Mineral wool:
  • RAL quality mark RAL-GZ 388
  • According to EN 13501, fire rating class A1, non-flammable
  • RAL quality mark RAL-GZ 388
  • Non-hazardous to health due to high bio-solubility, in accordance with the German Hazardous Substance Ordinance and Note Q of European Regulation (EC) No. 1272/2008
  • Protected against erosion from airflow velocities up to 20 m/s by glass-fibre fabric facing
  • Inert to fungal and bacterial growth

Connection type
  • With flanges on both ends
  • Suitable on both fan and room sides for mounting air duct profiles

Technical data
  • Nominal sizes: 125 – 315
  • Volume flow range: 27 – 872 l/s or 95 – 3142 m³/h
  • Minimum differential pressure: up to 109 Pa (without secondary silencer)
  • Maximum differential pressure: 1000 Pa
  • Leakage airflow with damper blade closed according to EN 1751, class 4. Casing air leakage according to EN 1751, class C

Equivalence criteria
  • Declaration of hygiene conformity in accordance with VDI 6022, Part 1 (01/2018), ÖNORM H 6020 (02/2007) and ÖNORM H 6021 (09/2003)
  • Meets the hygiene requirements according to EN 16798 Part 3, VDI 6022 Sheet 1, DIN 1946 Part 4
  • Acoustic data determined to ÖNORM EN ISO 5135:1999
  • No upstream sections required
  • Maximum control deviation of 5 % at qvmax, without upstream section
  • Setting the volume flow rates without adjustment device via qvmin- and qvmax potentiometer
  • Electrical connections with screw terminals, no additional terminal boxes required
  • The test report of the factory parameterisation, functional test and adjustment under airflow using reference measurement on a regularly validated test rig in accordance with DIN EN ISO 9001 is made available

Specification text attachment
Variable volume flow control with an electronic Easy controller, featuring setpoint input and actual value output for integration into the MCE.
  • Supply voltage 24 V AC/DC
  • Signal voltages 0 – 10 V DC
  • Possible override control with external switches using potential-free contacts: CLOSE, OPEN, qᵥmin and qᵥmax
  • Potentiometers with percentage scales to set the volume flow qᵥmin and qᵥmax
  • Actual value signal relates to the nominal volume flow, therefore simplifying commissioning and subsequent adjustment
  • Volume flow control range: approx. 10 – 100 % of the nominal volume flow
  • Externally clearly visible control indicator for signalling the functions: controlled, not controlled, and power failure
  • Electrical connections with screw terminals
  • Double terminals for connecting the supply voltage, for easy transmission of the voltage to the subsequent controller

Sizing data
  • qᵥ [m³ /h]
  • Δpst [Pa]

Air-regenerated noise

  • LPA [dB(A)]

Case-radiated noise

  • LPA [dB(A)]



Order code for volume flow control (with Easy controller)
TA-Silenzio–D/200/Easy
||||
1234

1 Type
TA-Silenzio VAV terminal unit, extract air

2 Acoustic cladding
No entry: none
D with acoustic cladding

3 Nominal size [mm]
125, 160, 200, 250, 315

4 Attachments (control component)
Easy Volume flow controller, dynamic, analogue interface, setting of qᵥmin and qᵥmax with potentiometers (provided by the customer)

Order example: TA–Silenzio/125/Easy

Acoustic claddingnone
Nominal size125
Attachments (control component)Easy volume flow controller, dynamic, setting qᵥmin and qᵥmax with potentiometers (provided by the customer)
