PURELINE18

Spigot with optional damper blade and optional lip seal

Alternating horizontal air discharge

Detachable diffuser face fixing

PL18-2/.../B00/P1-RAL 9010, installation in continuous ceilings

PURELINE18

Particularly slim diffuser face, available in many variants and with various air pattern options for many installation situations

Slot diffusers with 18 mm diffuser face (nominal width) and adjustable air control elements
■ Volume flow rate range 5 – 84 l/s or 17 – 302 m³/h
■ Individually adjustable air control elements for horizontal, angled or vertical air discharge
■ One-way or alternating air discharge allows for meeting local and project-specific requirements
■ Uniform air pattern reduces contamination of the ceiling due to induced room air
■ Air control elements have grooves that allow for precise positioning

Optional equipment and accessories
■ Attractive appearance due to extruded aluminium sections with anodised finish or powder coating
■ Diffuser face can be placed symmetrically or asymmetrically
■ Plenum box with lining
■ End plates, end angles, corner sections

■ Different looks due to choice of black, grey or white air control elements■ Different looks due to choice of black, grey or white air control elements

General information

Application

Slot diffusers are used as supply air or extract air devices in comfort zones
Particularly unobtrusive diffusers due to their sleek design
Installation into suspended ceilings
For room heights up to 4 m (lower edge of suspended ceiling)
For suspended ceilings; suitable for restricted ceiling voids
due to the low overall height of the plenum box
Suitable for continuous linear arrangement
Adjustable air control elements allow for horizontal, angled or
vertical air discharge
Mixed flow system with one-way or alternating air discharge,
can be adapted to the building structure
High induction results in a rapid reduction of the temperature
difference and airflow velocity (supply air variant)
For variable and constant volume flows
For supply air to room air temperature differences from -10 to +10 K

Special features

Uniform air pattern reduces contamination of the ceiling due to induced room air
Horizontal, angled or vertical air discharge by means of manually adjustable air control elements
Comfortable indoor climate due to high induction and rapid reduction of temperature differences and airflow velocities
Attractive appearance thanks to anodised extruded aluminium sections (E6-C-0, natural colour) or powder coating (RAL CLASSIC colour)
Diffuser face has been optimised for maximum volume flow rate at low sound power levels
Suitable for continuous linear arrangement

Nominal sizes

FLN: 600, 700, 800, 900, 1000, 1100, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900, 2000 mm
Intermediate sizes of the diffuser face are also available (in increments of 1 mm)

Variants

PL18-... :

-*: 1 to 2 slots
-DF: only front rail with B00 profile and spring clip
-DS: only front rail with B00 profile and screw fixing
-PB: Plenum box only (for combination with DS)
-PF: Combination of diffuser face and plenum box with fixed connection
-SF: Combination of diffuser face and plenum box with detachable screw fixing
-CD: Overflow rail which can be integrated into a slotted belt. The front rail has openings at the back through which air can flow. The fixing of the overflow rail must be done on site. The supplied connectors are used only for positioning and aligning the overflow rail
-BD: Blind rail that can be integrated into a slotted band. The diffuser face is closed on the reverse side so that there is no air flow through the blind rail. The blind rail must be fixed on site. The supplied connectors are used only for positioning and aligning the overflow rail
-CS: Corner section

Position of the plenum box on the diffuser face, if the plenum box is shorter than the diffuser face

Central position of plenum box
Plenum box on the left (LE)
Plenum box on the right (RI)

Plenum box variant

Symmetrical plenum box with horizontal connection (HS)
Symmetrical plenum box with vertical connection (VS)
Asymmetrical plenum box with horizontal connection (HA)

Construction

Diffuser face finish

With anodised finish, E6-C-0, natural colour
P1: Powder-coated RAL 9010, pure white, GU50
P1: Powder-coated RAL 9006, white aluminium, GU30
P1: Powder-coated in any other RAL CLASSIC colour, GU70

Attachments

D: Damper blade for volume flow rate balancing
LS: Lip seal
L: inner lining
EP: 2 end plates
EA: 2 end angles

Single diffusers are factory fitted with end plates or end angles. Either end plates or end angles can be used for the front end for continuous linear arrangements.

Accessories

EP: 2 end plates
EA: 2 end angles

For slot diffusers as continuous linear arrangement, the end plates or end angles must be ordered separately and installed on site. 2 alignment plates for connecting the front rails to each other are supplied separately with each slot diffuser without a factory-fitted end piece.

Construction features#

Spigot suitable for circular ducts to EN 1506 or EN 13180
4 suspension lugs on plenum box for mounting by the customer
Manually adjustable air control elements with detent for defined adjustment of the air distribution
Spigot with groove for lip seal (only for lip seal version)
Diffuser face available in mm increments between 600 and1950 mm
Plenum boxes only available in nominal lengths
Extract air variant without air control elements (E)
If the diffuser face is longer than the plenum box, the rear side of the protruding diffuser face ends are covered.
Factory set for a particular air pattern, manually adjustable on site (by others)
Diffuser face fixing material for variants -SF and -DS supplied separately

Materials and surfaces

Diffuser face made from extruded aluminium section
Air control elements made of ABS plastic, UL 94, V-0, flame retardant
Plenum box made of galvanised sheet steel
End plates and end angles made of aluminium
Lip seal made of Evoprene
Lining made of mineral wool and closed-cell vinyl foam
Diffuser face with anodised finish, E6-C-0, natural colour
P1: powder-coated colour according to RAL CLASSIC
Air control elements similar to RAL 9005, black
G: Air control elements similar to RAL 9006, grey
W: Air control blades similar to RAL 9010, white

Mineral wool

Mineral wool faced with glass fibre fabric on the surfaces in contact with the air, abrasion-resistant up to 20 m/s
To EN 13501, fire rating class A1, non-combustible
RAL quality mark RAL-GZ 388
Non-hazardous to health thanks to being highly biosoluble in accordance with the Ordinance on Hazardous Substances and Note Q of the European Directive (EC) No. 1272/2008
Inert to fungal and bacterial growth

Standards and guidelines

Sound power level of the air-regenerated noise measured according to EN ISO 5135
Conforms to VDI 6022

Maintenance

Low maintenance as construction and materials are not subject to wear and tear
Inspection and cleaning to VDI 6022

Műszaki információk

Function, Technical data, Quick sizing, Order code

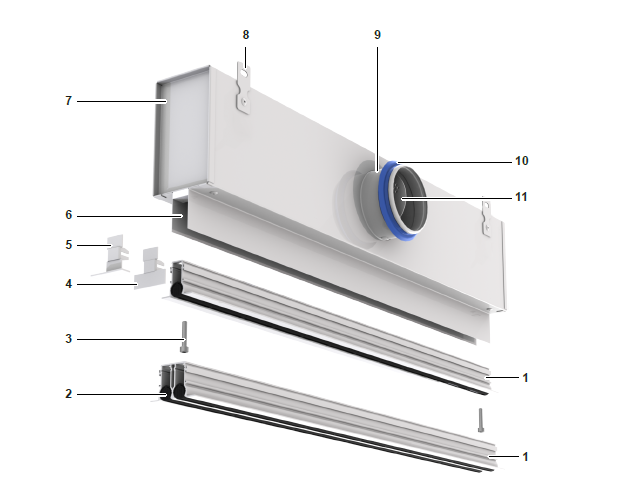

Schematic illustration of PL18-*-SF

1 Diffuser face, 1 slot or 2 slots

2 Adjustable air control element
3 Screw fixing
6 Neck
7 Plenum box
8 Suspension lug
9 Spigot

Optional

4 End plate
5 End angle
10 Lip seal
11 Damper blade for volume flow rate balancing

Slot diffusers direct the supply air from ventilation and air conditioning systems into the room, either horizontally, at an angle or vertically. The resulting airflow induces high levels of room air, thereby rapidly reducing the airflow velocity and the temperature difference between supply air and indoor air. The result is a mixed flow ventilation in comfort zones, with good overall room ventilation, creating only very little turbulence in the occupied zone. Type PURELINE18 slot diffusers are factory fitted with manually adjustable air control elements. The airflow direction can be adjusted to meet various local requirements. Air discharge is one-way or alternating. Heating operation with vertical flow is also possible, as is angled air discharge. The supply air to room air temperature difference may range from –10 to +10 K. A damper blade (optional) enables volume flow rate balancing for commissioning. To give rooms an aesthetic, uniform look, Type PURELINE18 diffusers may also be used for extract air.

Nominal lengths	600 – 2000 mm, in increments of 100 mm
No. of slots	1 or 2
Minimum volume flow rate, with Δt_z = -10 K	5 l/s or 17 m³/h
Maximum volume flow rate, with LWA ≅ 50 dB(A)	84 l/s or 302 m³/h
Supply air to room air temperature difference	-10 to +10 K

Quick sizing tables provide a good overview of the volume flow rates and corresponding sound power levels and differential pressures. Exact values for all parameters can be determined with our Easy Product Finder design program. Sizing up to nominal length 1500 mm includes one spigot; from length 1600 mm, two spigots are required.

PL18-1, supply air, alternating horizontal air discharge, sound power level and total differential pressure

D = 78

L_N	qᵥ [l/s]	qᵥ [m³/h]	Damper blade position
			0°		45°		90°
			Δpₜ [Pa]	LWA [dB(A)]	Δpₜ [Pa]	LWA [dB(A)]	Δpₜ [Pa]	LWA [dB(A)]
600	5	17	4	<15	5	<15	8	<15
600	10	38	15	29	21	29	35	29
600	16	58	34	41	49	40	81	41
600	22	78	62	49	88	49	148	49
700	6	20	4	<15	6	<15	10	<15
700	12	42	14	30	22	29	39	29
700	18	63	32	41	49	40	89	41
700	24	85	57	49	88	48	159	49
800	6	23	4	<15	6	<15	12	<15
800	13	46	14	30	23	29	44	30
800	19	69	31	41	51	40	98	41
800	26	92	54	49	91	48	173	49
900	7	26	4	<15	7	<15	14	<15
900	14	50	14	31	25	30	50	30
900	21	75	30	41	54	41	109	41
900	28	99	52	49	95	48	190	49
1000	8	29	4	<15	8	<15	16	<15
1000	15	54	14	31	27	30	56	30
1000	22	80	29	41	57	41	119	41
1000	29	105	51	49	99	48	206	49
1100	9	32	5	<15	9	<15	19	<15
1100	16	58	14	31	29	30	62	31
1100	24	85	29	42	60	41	130	41
1100	31	111	50	49	104	48	224	49
1200	10	35	5	16	10	<15	22	15
1200	17	62	14	32	31	31	69	31
1200	25	90	29	42	64	41	143	41
1200	33	117	50	49	109	48	243	49
1300	11	38	5	17	11	16	25	16
1300	18	66	15	32	34	31	77	32
1300	34	123	50	49	116	48	263	49
1400	11	41	6	17	13	16	29	17
1400	19	70	15	32	36	31	84	32
1400	27	99	30	42	73	41	168	41
1400	36	128	50	49	121	48	281	49
1500	12	44	6	18	14	17	33	18
1500	20	74	16	33	40	32	93	32
1500	29	104	31	42	78	41	183	42
1500	37	134	51	49	129	48	304	49
1600	13	47	4	<15	6	<15	12	<15
1600	24	86	12	31	20	30	38	31
1600	35	125	25	41	42	41	80	41
1600	46	164	43	49	72	48	138	49
1700	14	49	4	<15	7	<15	13	<15
1700	25	90	12	31	21	31	40	31
1700	36	130	25	42	43	41	84	41
1700	47	170	42	49	74	48	144	49
1800	15	52	4	16	7	<15	14	15
1800	26	94	12	32	22	31	43	31
1800	37	135	25	42	44	41	89	41
1800	49	176	41	49	75	48	151	49
1900	15	55	4	16	8	15	15	16
1900	27	98	12	32	22	31	46	31
1900	39	140	24	42	46	41	93	41
1900	51	182	41	49	77	48	158	49
2000	16	58	4	17	8	16	16	16
2000	28	101	12	32	23	31	48	32
2000	40	144	24	42	47	41	97	41
2000	52	187	40	49	78	48	164	49

PL18-1, supply air, alternating horizontal air discharge, sound power level and total differential pressure

D = 98

L_N	qᵥ [l/s]	qᵥ [m³/h]	Damper blade position
			0°		45°		90°
			Δpₜ [Pa]	LWA [dB(A)]	Δpₜ [Pa]	LWA [dB(A)]	Δpₜ [Pa]	LWA [dB(A)]
600	5	17	3	<15	4	<15	5	<15
600	10	38	14	26	16	26	22	26
600	16	58	31	38	37	38	50	38
600	22	78	57	46	67	46	91	46
700	6	20	3	<15	4	<15	6	<15
700	12	42	13	27	16	26	23	26
700	18	63	28	38	35	38	51	38
700	24	85	51	46	63	46	91	46
800	6	23	3	<15	4	<15	7	<15
800	13	46	12	27	16	27	24	27
800	19	69	27	38	35	38	54	38
800	26	92	47	46	61	46	94	46
900	7	26	4	<15	5	<15	7	<15
900	14	50	12	28	16	27	26	27
900	21	75	25	38	35	38	57	38
900	28	99	44	46	61	46	99	46
1000	8	29	4	<15	5	<15	8	<15
1000	15	54	11	28	17	27	28	28
1000	22	80	24	38	35	38	60	38
1000	29	105	41	46	60	45	104	46
1100	9	32	4	<15	6	<15	10	<15
1100	16	58	11	28	17	28	30	28
1100	24	85	23	38	36	38	64	38
1100	31	111	39	46	61	45	109	46
1200	10	35	4	<15	6	<15	11	<15
1200	17	62	11	29	18	28	33	28
1200	25	90	23	39	37	38	68	38
1200	33	117	38	46	62	45	115	46
1300	11	38	4	<15	6	<15	12	<15
1300	18	66	11	29	19	28	36	29
1300	26	95	22	39	38	38	73	38
1300	34	123	37	46	64	45	123	46
1400	11	41	4	<15	7	<15	13	<15
1400	19	70	11	29	20	28	39	29
1400	27	99	22	39	39	38	77	38
1400	36	128	36	46	65	45	129	46
1500	12	44	4	15	8	<15	15	<15
1500	20	74	11	30	21	29	42	29
1500	29	104	22	39	41	38	83	39
1500	37	134	36	46	67	45	137	46
1600	13	47	3	<15	4	<15	7	<15
1600	24	86	11	28	14	28	21	28
1600	35	125	22	39	29	38	44	38
1600	46	164	37	46	49	46	75	46
1700	14	49	3	<15	5	<15	7	<15
1700	25	90	10	28	14	28	22	28
1700	36	130	21	39	28	38	45	38
1700	47	170	36	46	48	46	77	46
1800	15	52	4	<15	5	<15	7	<15
1800	26	94	10	29	14	28	23	28
1800	37	135	21	39	29	38	46	38
1800	49	176	35	46	48	46	79	46
1900	15	55	4	<15	5	<15	8	<15
1900	27	98	10	29	14	28	24	29
1900	39	140	20	39	29	38	48	38
1900	51	182	34	46	48	46	81	46
2000	16	58	4	<15	5	<15	8	<15
2000	28	101	10	29	14	28	24	29
2000	40	144	20	39	29	38	49	38
2000	52	187	33	46	48	45	82	46

PL18-2, supply air, alternating horizontal air discharge, sound power level and total differential pressure

D = 98

L_N	qᵥ [l/s]	qᵥ [m³/h]	Damper blade position
			0°		45°		90°
			Δpₜ [Pa]	LWA [dB(A)]	Δpₜ [Pa]	LWA [dB(A)]	Δpₜ [Pa]	LWA [dB(A)]
600	10	35	4	<15	6	<15	11	<15
600	19	67	13	30	21	28	37	29
600	27	98	28	41	46	39	81	40
600	36	130	49	49	79	47	141	48
700	11	41	4	<15	7	<15	13	<15
700	21	74	13	31	23	29	43	30
700	30	108	27	41	48	39	90	40
800	39	141	46	49	82	47	155	48
800	13	47	5	16	9	<15	16	<15
800	23	81	13	32	25	29	49	31
800	32	116	26	42	51	39	100	40
900	42	151	44	49	85	47	169	48
900	15	52	5	18	10	15	20	16
900	25	89	14	32	28	30	56	31
900	35	125	26	42	54	39	111	41
1000	45	161	44	49	90	46	185	48
1000	16	58	6	19	12	16	24	18
1000	27	95	14	33	30	30	64	32
1000	37	133	27	42	58	39	123	41
1200	47	170	43	49	95	46	201	48
1100	18	64	6	20	13	18	28	19
1100	28	102	14	34	33	31	71	32
1100	39	140	27	42	62	39	134	41
1300	19	70	7	22	15	19	33	20
1200	30	109	15	34	36	31	79	33
1200	41	147	27	43	66	40	146	41
1200	52	186	43	49	105	46	232	48
1300	21	76	7	23	17	20	38	21
1300	32	115	16	35	40	31	88	33
1300	43	155	28	43	71	40	158	41
1300	54	194	44	49	112	46	249	48
1400	23	81	8	24	20	21	44	22
1400	34	121	17	35	43	32	97	33
1400	45	161	29	43	75	40	170	41
1400	56	201	45	49	117	46	265	48
1500	24	87	8	25	22	22	50	23
1500	35	128	17	35	47	32	106	34
1500	47	168	30	43	80	40	183	42
1500	58	208	46	49	123	46	281	48
1600	26	93	5	19	9	17	16	18
1600	42	152	12	33	22	31	43	32
1600	59	211	22	42	42	40	83	41
1600	75	270	36	49	68	47	135	48
1700	27	99	5	20	9	18	18	19
1700	44	159	12	33	23	31	46	32
1700	61	218	22	42	43	40	87	41
1700	77	278	35	49	70	46	140	48
1800	29	105	5	21	10	18	20	20
1800	46	165	12	34	24	31	49	32
1800	63	226	22	42	45	40	92	41
1800	80	287	35	49	72	46	147	48
1900	31	111	5	22	11	19	22	20
1900	48	172	12	34	25	31	52	33
1900	65	234	22	43	46	40	96	41
1900	82	295	35	49	74	46	153	48
2000	32	116	6	22	12	20	24	21
2000	50	178	12	34	26	32	56	33
2000	67	240	22	43	48	40	100	41
2000	84	302	34	49	75	46	159	48

PL18-2, supply air, alternating horizontal air discharge, sound power level and total differential pressure

D = 123

L_N	qᵥ [l/s]	qᵥ [m³/h]	Damper blade position
			0°		45°		90°
			Δpₜ [Pa]	LWA [dB(A)]	Δpₜ [Pa]	LWA [dB(A)]	Δpₜ [Pa]	LWA [dB(A)]
600	10	35	4	<15	4	<15	6	<15
600	19	67	11	27	15	26	21	26
600	27	98	24	38	31	36	46	37
600	36	130	42	45	54	44	79	45
700	11	41	4	<15	5	<15	7	<15
700	21	74	11	27	15	26	23	27
700	30	108	22	38	31	36	48	37
800	39	141	38	45	52	44	82	44
800	13	47	4	<15	5	<15	9	<15
800	23	81	11	28	15	26	25	27
800	32	116	21	38	31	36	51	37
900	42	151	35	45	51	43	85	44
900	15	52	4	<15	6	<15	10	<15
900	25	89	10	28	16	27	28	27
900	35	125	20	38	31	36	54	37
1000	45	161	33	45	52	43	90	44
1000	16	58	4	15	7	<15	12	<15
1000	27	95	10	29	17	27	30	28
1000	37	133	19	38	32	36	58	37
1200	47	170	31	45	52	43	95	44
1100	18	64	4	16	7	<15	13	15
1100	28	102	10	29	18	27	33	28
1100	39	140	19	38	33	36	62	37
1300	19	70	5	18	8	15	15	16
1200	30	109	10	30	19	28	36	29
1200	41	147	18	38	34	36	66	37
1200	52	186	29	45	54	43	105	44
1300	21	76	5	19	9	16	17	17
1300	32	115	10	30	20	28	39	29
1300	43	155	18	39	36	36	71	37
1300	54	194	29	45	56	43	111	44
1400	23	81	5	20	10	17	20	18
1400	34	121	11	31	21	28	43	30
1400	45	161	18	39	37	36	75	37
1400	56	201	28	45	57	42	117	44
1500	24	87	5	21	11	18	22	19
1500	35	128	11	31	22	29	46	30
1500	47	168	18	39	39	36	80	38
1500	58	208	28	45	59	42	123	44
1600	26	93	4	15	5	<15	9	<15
1600	42	152	9	29	13	28	22	28
1600	59	211	17	38	25	37	42	37
1600	75	270	28	45	41	44	68	44
1700	27	99	4	16	6	<15	9	15
1700	44	159	9	29	14	28	23	28
1700	61	218	17	38	25	37	43	37
1700	77	278	27	45	41	43	69	44
1800	29	105	4	17	6	15	10	16
1800	46	165	9	30	14	28	24	29
1800	63	226	17	38	26	37	45	37
1800	80	287	26	45	41	43	72	44
1900	31	111	4	18	6	16	11	17
1900	48	172	9	30	14	28	25	29
1900	65	234	16	39	26	37	46	38
1900	82	295	26	45	41	43	73	44
2000	32	116	4	18	7	16	12	17
2000	50	178	9	30	15	28	26	29
2000	67	240	16	39	26	37	48	38
2000	84	302	25	45	41	43	75	44

PL18

–

1200 × 1000 × 98

–

B00

P1 - RAL 9016

1 Type
PL18 Slot diffuser PURELINE18

2 No. of slots
1, 2

3 System
S Supply air
E Extract air (without air control elements as standard)
E1 Extract air (with air control elements)

4 Variant
DF Diffuser face with spring clip (only together with B00)
DS Diffuser face with fixing screws (only together with B00)
CD Air transfer section
BD Non-active diffuser
PB Plenum box only
PF Diffuser face fixed to the plenum box, non-detachable
SF Diffuser face fixed to the plenum box, detachable (only together with B00)

5 Plenum box variant
HS Symmetrical, with horizontal spigot
VS Symmetrical, with vertical spigot
HA Asymmetrical, with horizontal spigot

6 Nominal size [mm]
Diffuser face length × plenum box length × spigot diameter

Diffuser face length
600 – 2000

Plenum box length
600 – 2000 (in increments of 100 mm)

Spigot diameter
78 (with 1 slot)
98 (with 1 or 2 slots)
123 (with 2 slots)

7 No. of spigots
1 (up to plenum box length 1200 mm)
2 (from plenum box length 900 mm)

8 Damper blade for volume flow rate balancing
No entry: without damper blade
D With damper blade

9 Lip seal
No entry: without lip seal
LS With lip seal

10 Lining
No entry: without lining
L With lining

11 Position of plenum box
No entry: centre
LE Left side
Rl Right side

12 Air pattern
No entry: alternating horizontal
AS Alternating angled
HL Horizontal left
HR Horizontal right
V Vertical

13 Extended border – diffuser face
No entry: without extended border
B00 With extended border

14 End pieces
No entry: without end pieces
EP End plate
EA End angle
To be ordered separately for continuous linear runs

15 Surface
No entry: anodised, E6-C-0 (no colour)
P1 Powder-coated, specify RAL CLASSIC colour

Gloss level
RAL 9010 GU50
RAL 9006 GU30
All other RAL colours GU70

16 Colour of air control elements
No entry: similar to RAL 9005 (jet black)
W Similar to RAL 9010 (pure white)
G Similar to RAL 9006 (white aluminium)Order example: PL18-1-S-PF-HS/1200×1200×98/1

Type	PURELINE18
Number of slots	1
System	Supply air
Variant	Diffuser face fixed to the plenum box, non-detachable
Plenum box variant	Symmetrical plenum box with side entry spigot
Nominal size	Diffuser face 1200 mm, plenum box 1200 mm, spigot diameter 98 mm
No. of spigots	1
Damper blade for volume flow rate balancing	Without
Lip seal	Without
Lining	Without
Position of plenum box	Centre
Air pattern	Alternating horizontal
Extended border	Without
End pieces	Without
Surface	Anodised, E6-C-0, natural colour
Colour of air control elements	Black

PL18

–

100 × 100 × 90

B00

P1 - RAL 9016

1 Type
PL18 Slot diffuser PURELINE18

2 No. of slots
1, 2

3 System
S Supply air
E Extract air (without air control elements as standard)
E1 Extract air (with air control elements)

4 Variant
CS Corner section

5 Dimensions
Leg length E [mm]
100 – 300 (in increments of 1 mm)

Leg length F [mm]
100 – 300 (in increments of 1 mm)

Angle [°]
45 – 175 (in increments of 1 degree)

6 Extended border – diffuser face
No entry: without extended border
B00 With extended border

7 Surface
No entry: anodised, E6-C-0 (no colour)
P1 Powder-coated, specify RAL CLASSIC colour

Gloss level
RAL 9010 GU50
RAL 9006 GU30
All other RAL colours GU70

8 Colour of air control elements
No entry: similar to RAL 9005 (jet black)
W Similar to RAL 9010 (pure white)
G Similar to RAL 9006 (white aluminium),

PL18	–	EA	/	2	–	B00	/	P1 - RAL 9016
\|		\|		\|		\|		\|
1		2		3		4		5

1 Type
PL18 Slot diffuser PURELINE18

2 Variant
EP 1 pair of end plates
EA 1 pair of end angles

3 No. of slots
1, 2

4 Extended border
No entry: without extended border
B00 With extended border

5 Surface
No entry: anodised, E6-C-0 (no colour)
P1 Powder-coated, specify RAL CLASSIC colour

Gloss level
RAL 9010 GU50
RAL 9006 GU30
All other RAL colours GU70

Variants

Asymmetrical plenum box

Application

Schlitzdurchlässe als Zuluft- oder Abluftdurchlass für Komfortbereiche
Durch das schmale Erscheinungsbild entsteht ein besonders unauffälliger Luftdurchlass
Einbau in abgehängte Decken
Für Räume bis ca. 4 m Höhe (Unterkante Fertigdecke)
Für abgehängte Decken, auch bei niedrigem Zwischenraum, aufgrund der geringen Höhe des Anschlusskastens
Optisch durchlaufende Bandverlegung möglich
Durch verstellbare Luftleitelemente für horizontale, schräge oder vertikale Luftführung
Mischlüftungssystem mit einseitiger oder wechselseitiger Luftführung vor Ort an die baulichen Gegebenheiten anpassbar
Hohe Induktion bewirkt schnellen Abbau der Temperaturdifferenz und der Luftgeschwindigkeit (bei Zuluft)
Für konstante und variable Volumenströme
Für Zulufttemperaturdifferenzen von -10 – +10 K

Application

Schlitzdurchlässe als Zuluft- oder Abluftdurchlass für Komfortbereiche
Durch das schmale Erscheinungsbild entsteht ein besonders unauffälliger Luftdurchlass
Einbau in abgehängte Decken
Für Räume bis ca. 4 m Höhe (Unterkante Fertigdecke)
Für abgehängte Decken, auch bei niedrigem Zwischenraum, aufgrund der geringen Höhe des Anschlusskastens
Optisch durchlaufende Bandverlegung möglich
Durch verstellbare Luftleitelemente für horizontale, schräge oder vertikale Luftführung
Mischlüftungssystem mit einseitiger oder wechselseitiger Luftführung vor Ort an die baulichen Gegebenheiten anpassbar
Hohe Induktion bewirkt schnellen Abbau der Temperaturdifferenz und der Luftgeschwindigkeit (bei Zuluft)
Für konstante und variable Volumenströme
Für Zulufttemperaturdifferenzen von -10 – +10 K

Application

Schlitzdurchlässe als Zuluft- oder Abluftdurchlass für Komfortbereiche
Durch das schmale Erscheinungsbild entsteht ein besonders unauffälliger Luftdurchlass
Einbau in abgehängte Decken
Für Räume bis ca. 4 m Höhe (Unterkante Fertigdecke)
Für abgehängte Decken, auch bei niedrigem Zwischenraum, aufgrund der geringen Höhe des Anschlusskastens
Optisch durchlaufende Bandverlegung möglich
Durch verstellbare Luftleitelemente für horizontale, schräge oder vertikale Luftführung
Mischlüftungssystem mit einseitiger oder wechselseitiger Luftführung vor Ort an die baulichen Gegebenheiten anpassbar
Hohe Induktion bewirkt schnellen Abbau der Temperaturdifferenz und der Luftgeschwindigkeit (bei Zuluft)
Für konstante und variable Volumenströme
Für Zulufttemperaturdifferenzen von -10 – +10 K

Letöltések

termékinformáció

Product data sheet PURELINE18

PURELINE18_PD_2022_12_22_DE_en Product data sheet 1,6 MB pdf
Type PureLin18

3,5 MB pdf

tanúsítványok

Environmental Product Declaration Pureline 18

Pureline18_EPD_2024_11_DE_en Environmental Product Declaration 1 MB pdf
Non-CE Manufacturer's statement PURELINE18

PL18_NotCE_2022_02_08_14_37_50_DE_en Certificate 1,2 MB pdf

kezelési útmutatók

Installation manual PURELINE18

PL18_IM_A00000063832_V2_2024_02_GB_en Installation manual 2,3 MB pdf

A gombra kattintva lehetővé teszi számunkra, hogy kiváló weboldal-élményt és egyszerű vásárlási folyamatokat nyújtsunk Önnek. Ezek a sütik információkat hordoznak, amelyek szükségesek a webhely működéséhez, valamint szolgáltatásaink és alkalmazásaink ellenőrzéséhez, valamint kizárólag statisztikai célokra, kényelmi beállításokhoz vagy személyre szabott tartalom megjelenítéséhez használt információkat. Eldöntheti, hogy mely kategóriákat kívánja engedélyezni, és az egyedi igényeknek megfelelően módosíthatja az adatfelhasználási beállításokat. Felhívjuk figyelmét, hogy a kiválasztott beállításoktól függően előfordulhat, hogy az oldal összes funkciója nem érhető el. A választását bármikor megváltoztathatja.

MŰSZAKILAG SZÜKSÉGES

Ezek a sütik (cookies) a weboldalunk megfelelő működéséhez szükségesek, és nem tilthatók le. Ezek a sütik általában csak az Ön által végrehajtott tevékenységekre válaszul kerülnek beállításra, például az adatvédelmi beállítások megadása vagy a bevásárlókosár feltöltése. Ezen kívül integrálják a biztonság szempontjából releváns funkciókat vagy egy dedikált webchat segítségével nyújtott támogatást beleértve az összes munkamenet cookie-t a TROX-tól, miután bejelentkezett ügyfélként. Beállíthatja a böngészőt hogy blokkolja ezeket a sütiket, vagy értesítést kapjon róluk. Ennek eredményeként előfordulhat, hogy a webhely egyes területei nem a rendeltetésszerűen működnek.

PURELINE18

Particularly slim diffuser face, available in many variants and with various air pattern options for many installation situations

General information

Műszaki információk

Function, Technical data, Quick sizing, Order code

Variants

Letöltések

termékinformáció

Product data sheet PURELINE18

Type PureLin18

tanúsítványok

Environmental Product Declaration Pureline 18

Non-CE Manufacturer's statement PURELINE18

kezelési útmutatók

Installation manual PURELINE18

MŰSZAKILAG SZÜKSÉGES

STATISZTIKA ÉS HONLAPOK ELEMZÉSE

KÉNYELEM ÉS SZEMÉLYRE SZABÁS

A LEGJOBB TROX ÉLMÉNYHEZ
